Boarding Post

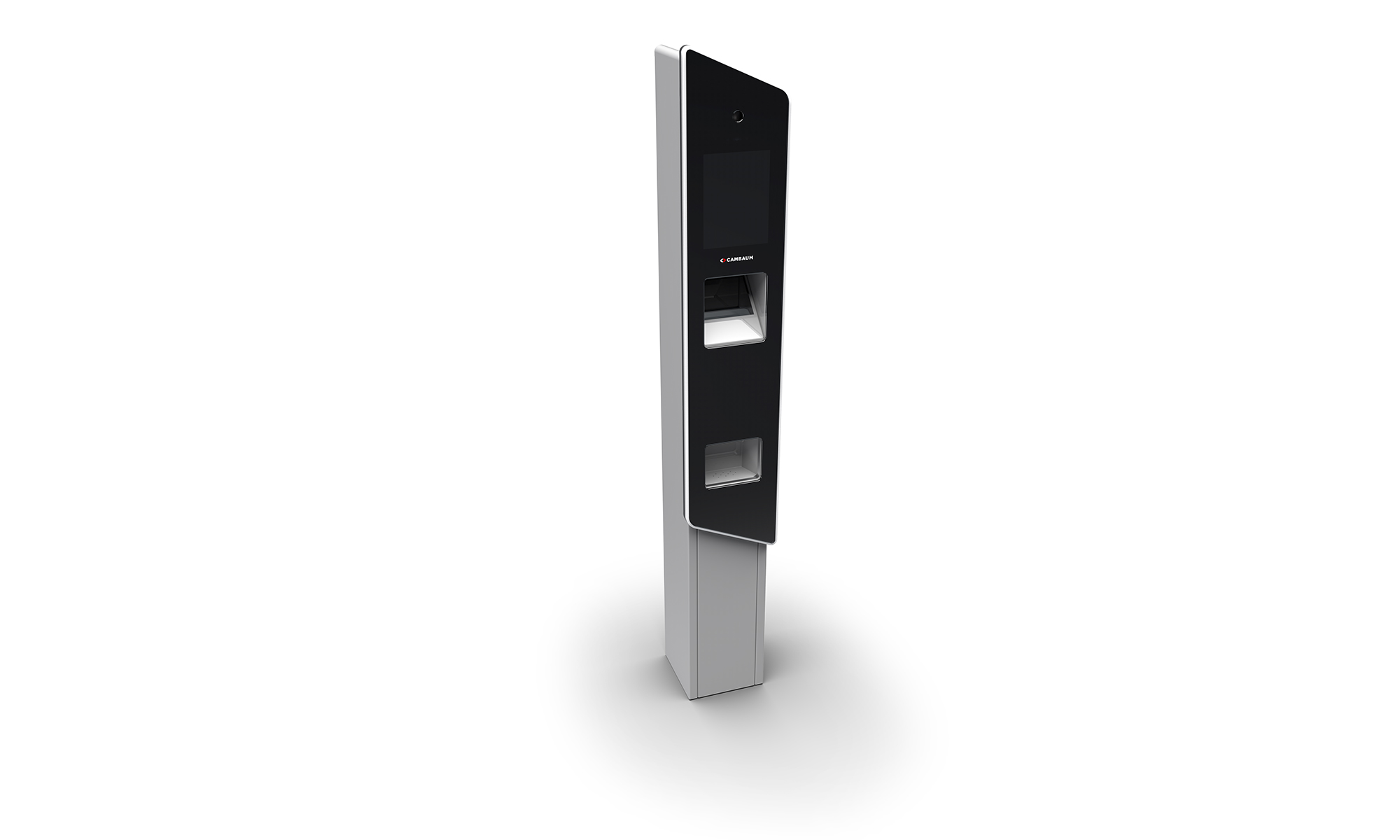

Boarding Post ARP-CB21-02

For easy boarding pass control

The Boarding Post ARP-CB21-02 developed by Cambaum is primarily used for boarding pass control. It can be connected to an existing gate, automatic door or other physical access control at any time. Use in railway stations or metros and other non-automated entrances is also possible.

Through various extensions, the post can also control more complex processes and thus efficiently influence the passenger flow.

The post is equipped with the following modules:
- Passport reader and/or ID card reader

- Boarding card reader
- Display

- User guidance through adaptable lighting concept





Areas of application

Boarding pass control in airports, ticket control in railway stations, metro, etc.


The Access Release Post ARP-CB21-02 is made of high-strength, corrosion-free stainless steel and thus offers the best surface to avoid scratches and wear, even with intensive use. At the same time, it has a carbon footprint that is up to ten times better than that of aluminium and thus makes a major contribution to environmentally friendly equipment.

Technical Details

Housing
Stainless steel polished powder-coated


Lighting
Circumferential LED display red/green for user guidance and for operational readiness of the unit.

Front
Glass panel, ESG 6 mm, with integrated display.

Display size:

10,4"


Camera

Infrared camera for body temperature measurement



Camera module

RGB camera module for recognition of mouth and nose protection and optional face recognition



Disinfection Dispenser

Touchless, with integrated sensor technology



Function

The user positions himself in front of the column, looks into the camera.
The boarding pass is scanned and the passport/ID card is checked. If both are positive, the control person lets the user pass. If an optional facial recognition system is also integrated, this data is also checked and if the result is positive, the user can pass.

With the optional integrated contactless hand disinfection dispenser, it also supports companies and operators in complying with the required hygiene measures.





Benefits

  • Various passport readers possible such as: Barcode, QR Code, RFID
  • Camera for facial recognition
  • Adaptable lighting concept
  • All RAL colours available
